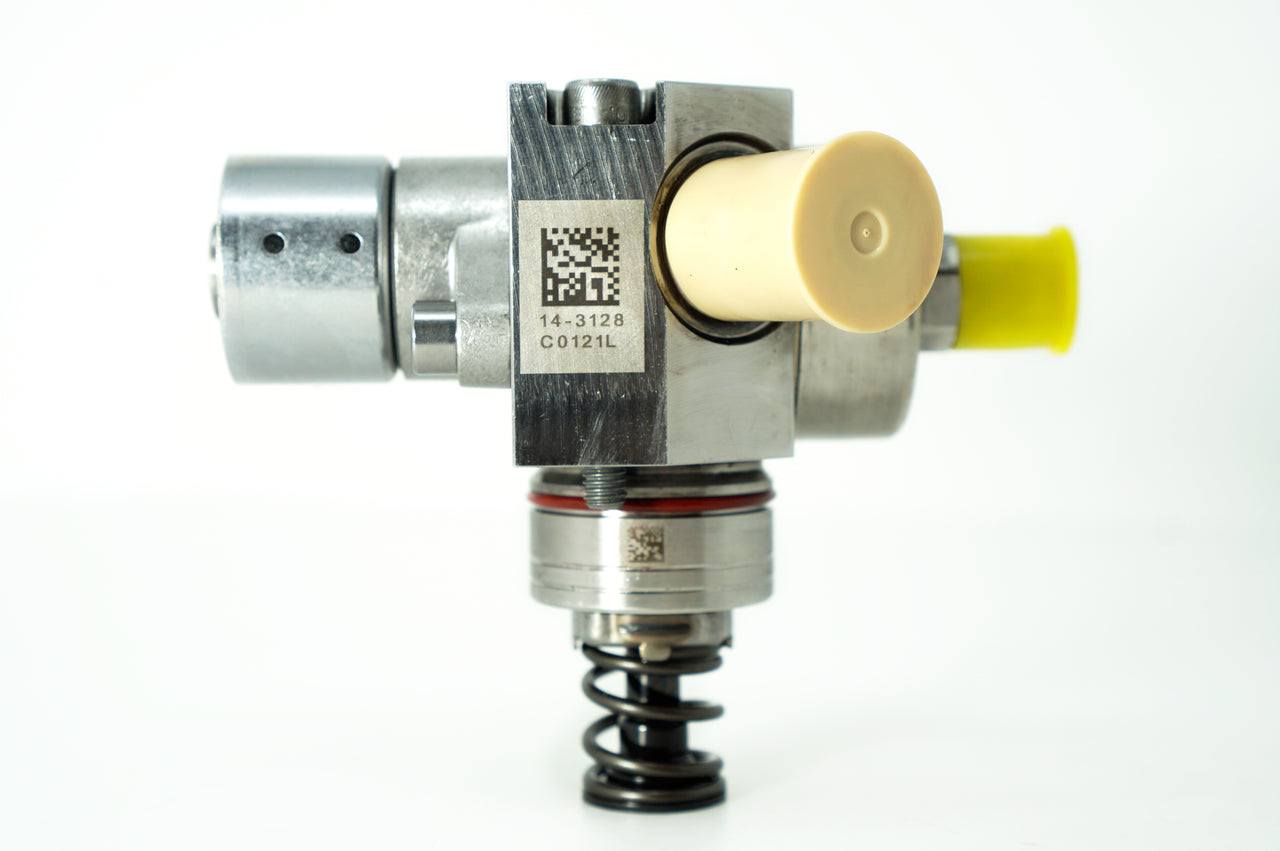

Stanadyne 1150-250 High Pressure Fuel Pump LT4+
Nostrum's high pressure fuel pump is a universal HPFP core with a Large 11.5mm piston and a 250bar operating pressure. This pump is manufactured by Stanadyne Inc and is available for order.
Capable of 250 bar rail pressure sustained operation, this HPFP has a much higher pressure rating than the production GM LT4 pump.
Although a very similar outline to a stock GM LT4 pump (part number 12711668 or 12694529), this universal pump differs with an AN06 male threaded low pressure inlet as opposed to a 3/8" SAE quick connect fitting (on the LT4). The AN fitting allows you to adapt the universal pump for your application specific needs with the addition of industry standard AN fitting hardware.
This pump does not include the accessories and hardware associated with engine installation.
For single piece GM LT4 service parts with accessories and hardware, please go to your local GM parts center.
Later model factory pumps flanges not compatible - Some L84,L86/L87/L8T/LT2
Later model factory fuel pump connector harness not compatible - L84/L86/L87/L8T/LT2
If you have the above non-compatible harness you must purchase here - https://lsa-conversion-store.myshopify.com/collections/adm-performance-sale/products/2014
We also offer Injectors that pair well with this pump and its extra pressure capabilities.
- Piston Diameter: 11.49 mm
- Max Piston Travel (TDC-BDC): 10 mm
- Max Operating Pressure (Rail Pressure Target): 250 bar (25 MPa / 3636 psi)
- Displaced Flow Per Cam Revolution (6 mm stroke): 1865.44 mm^3

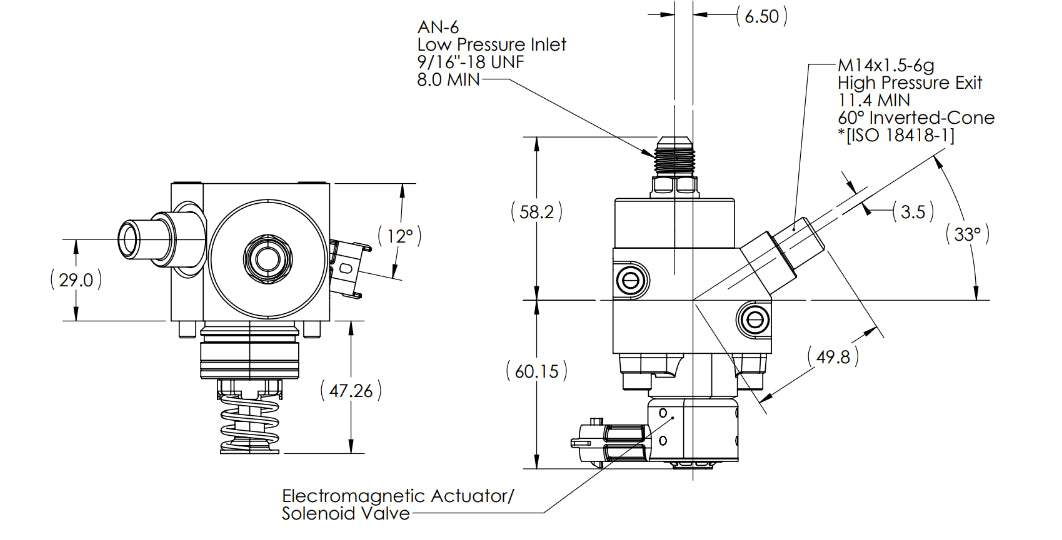

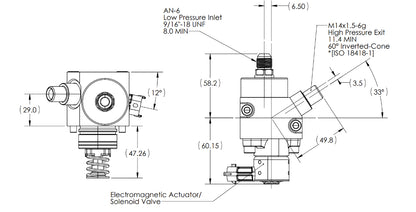

- High Pressure Fitting Spec: M14x1 male thread with inner female cone
- Low Pressure Fitting Spec: AN06 male
